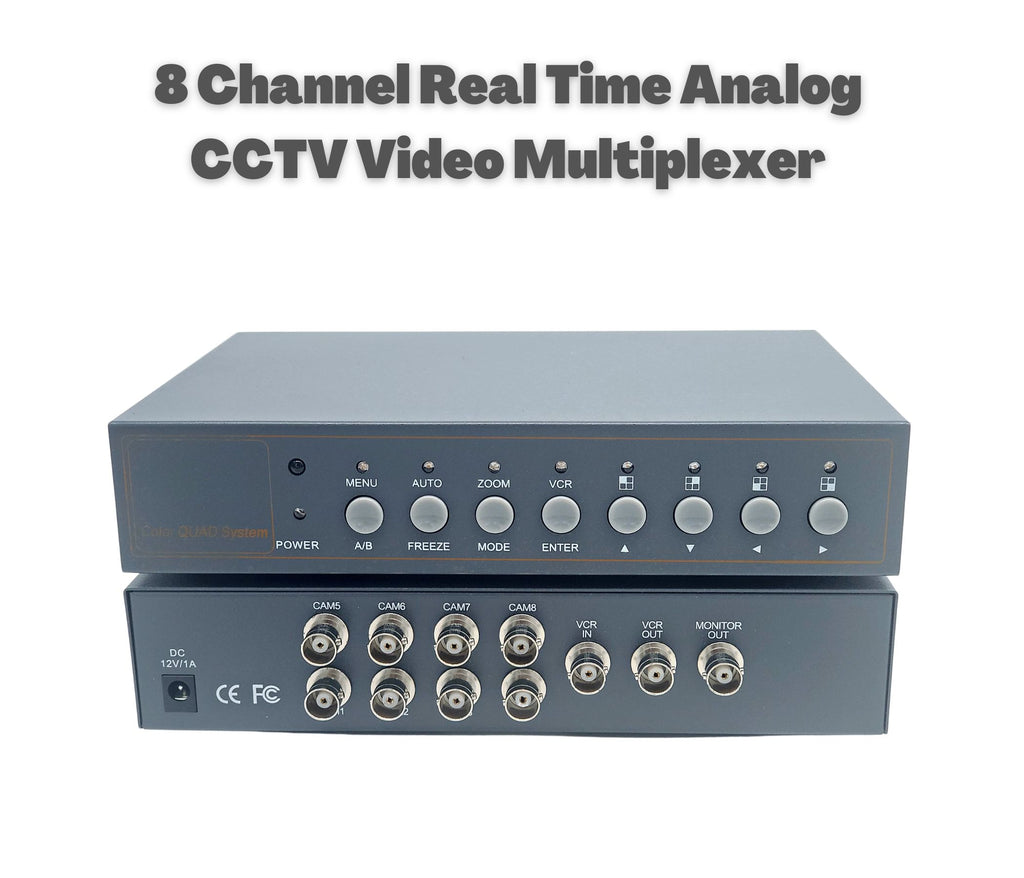

EV-CQ208 8 CHANNEL COLOR QUAD PROCESSOR HIGH QUALITY SCREEN SPLITTER VIDEO MULTIPLEXER WITH REMOTE CONTROL

Discriptions:

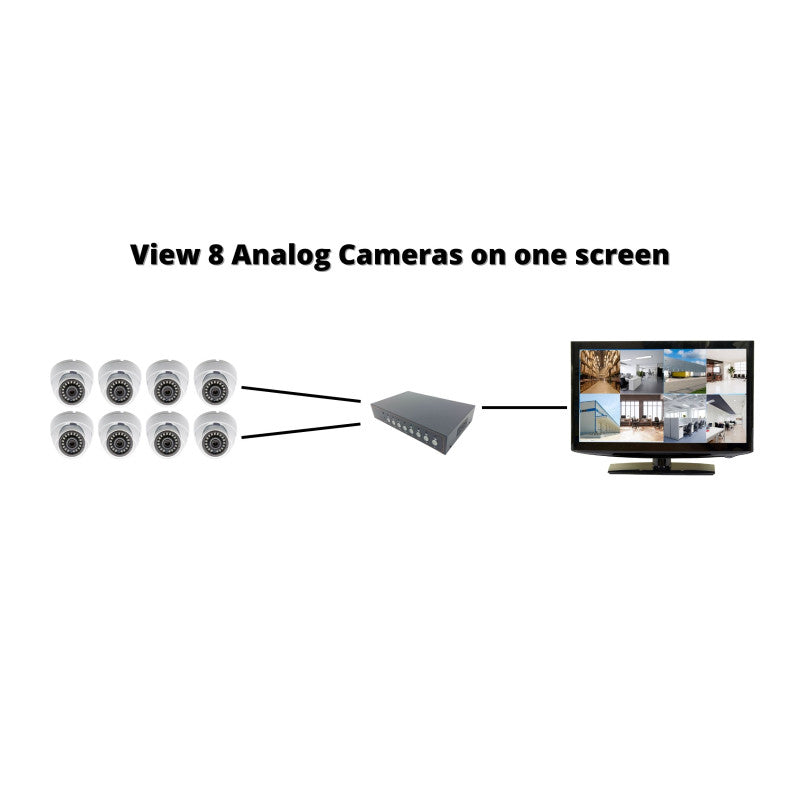

High speed display in 8 image split

Each image quality can independently adjust

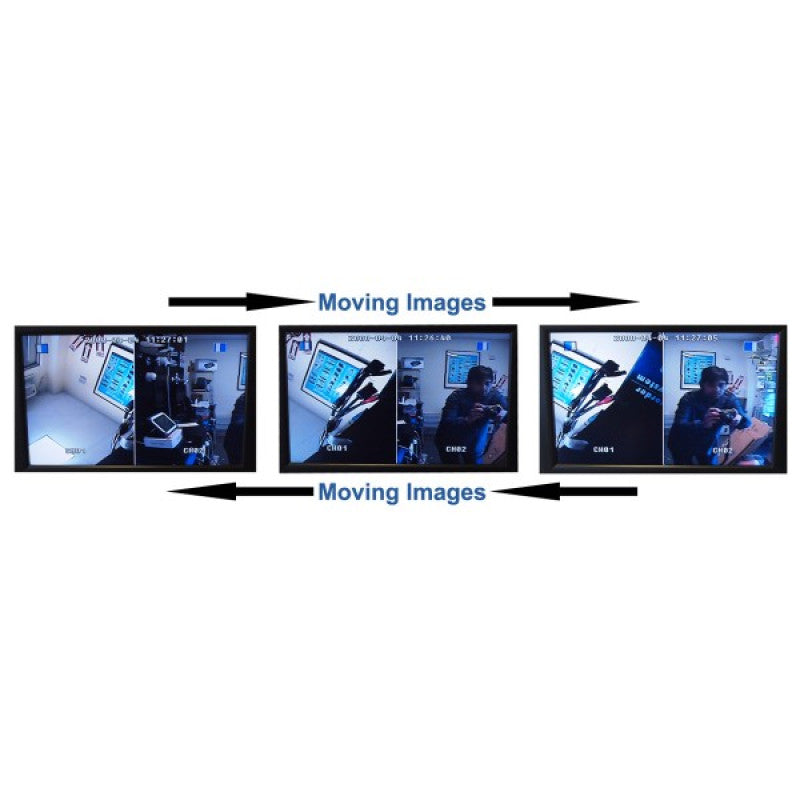

The image can auto switch each other

2 PIP functions and 1PIP function, each PIP position can be adjustable and display channel number can be edited

Dual Split function, each picture position can adjustable and display channel number can be edited

ZOOM function, zoomed area can be moved while zoom function is invoked

High Quality image freeze function, more than one image can freeze in different channel

Motion detection alarm, image loss alarm

60 groups event record

Each channel number can be edited

Screen position and the length time of alarm can be adjustable

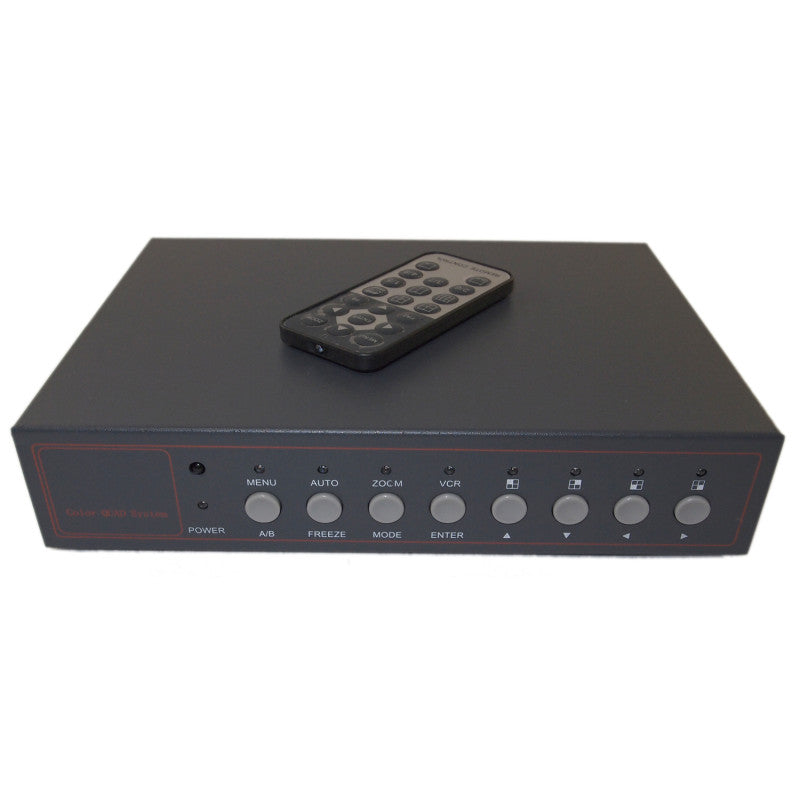

Support IR remote controller


Video System PAL/NTSC
Image Refurbish PAL: 25fps per channel
NTSC: 30fps per channel
Resolution

PAL: 720 (H) x 576 (V)

NTSC: 720 (H) x 480 (V)

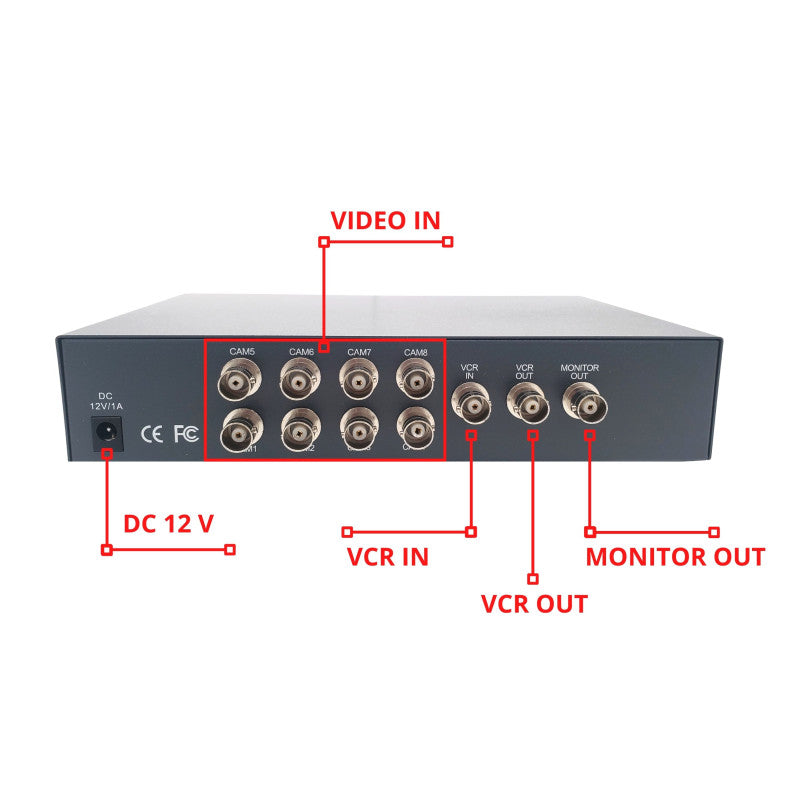

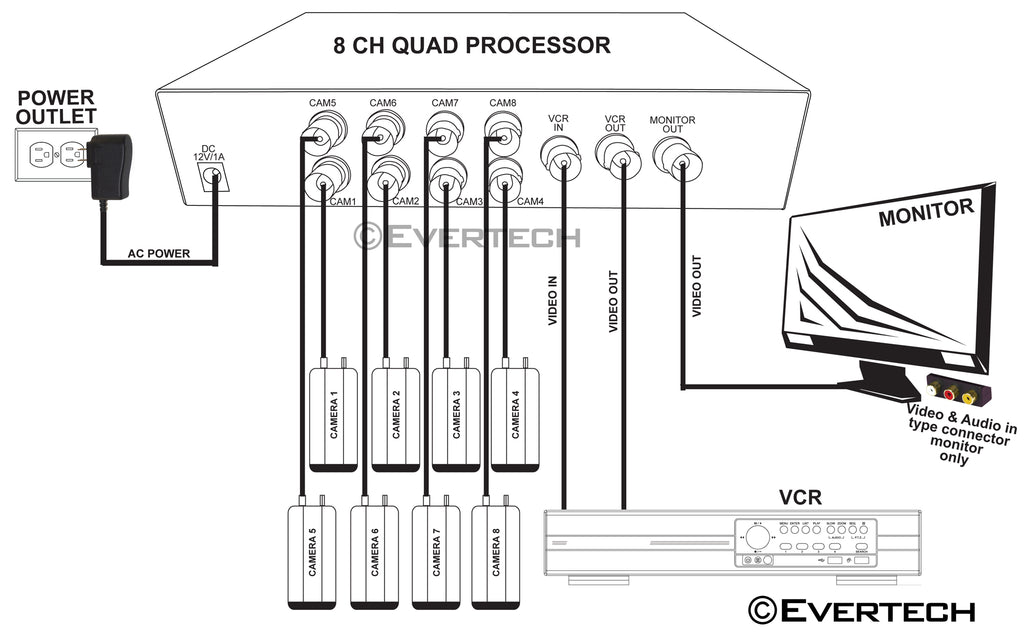

Video Input 8 channel video signal input ,1Vp-p,75Ω
1 channel recording playback video signal input, 1Vp-p,75Ω
Video Output 1 channel master monitor output ,1Vp-p,75Ω
1 channel assistant monitor output, 1Vp-p,75Ω
Auto Switch 0 - 99 sec
Audio Input 4 channel audio input (RCA)
Audio Output 1 channel audio output (RCA)
Event Record 60 groups
Alarm Out No
Language English
Video Adjust Brightness ,Contrast, Saturation, Hue, Sharpness can be adjustable
Power Consumption 5W(400mA)
Operation Temperature -10 ℃ to 60 ℃
Operational Humidity within 85%RH
Supplied Supply DC12V

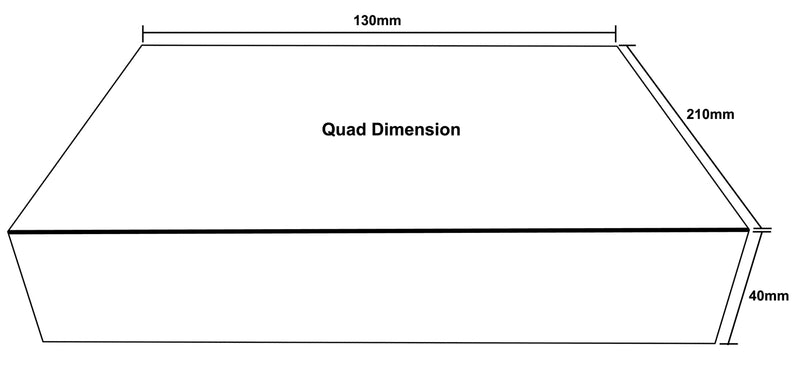

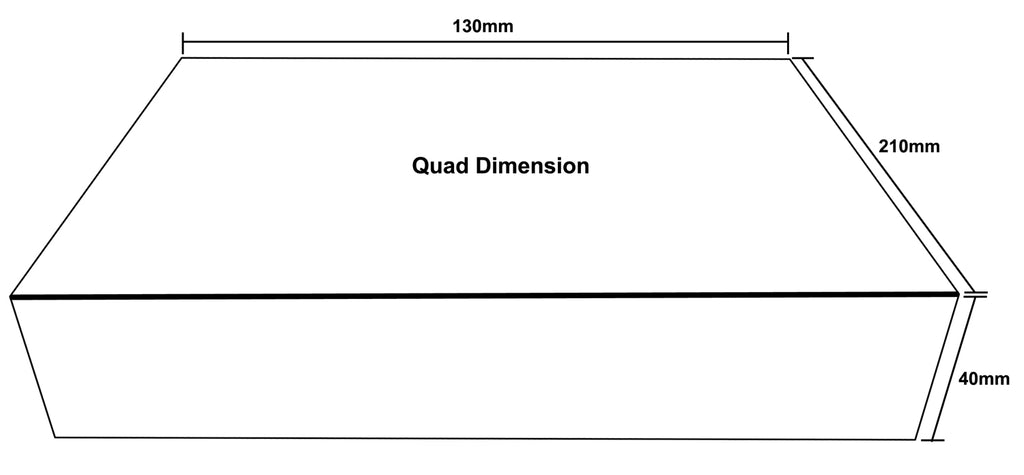

Dimension 210mm(L) x 130mm(W) x 40mm(H)
Weight Approx. 900g
